Zeolite Rotor Concentration Technology: Advanced VOC Recovery Solutions
2026-05-27
Introduction
Volatile Organic Compound (VOC) emissions represent one of the most challenging environmental compliance issues for manufacturing industries. Traditional thermal oxidation methods, while effective, consume significant energy and generate secondary pollutants. Zeolite rotor concentration technology offers an elegant solution, concentrating dilute VOC streams into smaller, more efficiently treated flows while recovering valuable solvents.

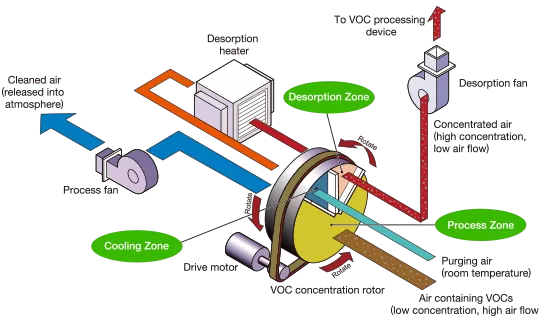

Figure: Zeolite Rotor Concentration System
Zeolite rotor systems operate through adsorption and desorption cycles:
Figure: Zeolite Rotor Concentration System
Desorption Zone: A heated air stream (typically 180-220°C) regenerates the zeolite, releasing concentrated VOCs in a much smaller airflow (usually 1/10th to 1/20th of the original volume).
Cooling Zone: Ambient air cools the regenerated zeolite before it re-enters the adsorption zone, completing the cycle.
The continuous rotation (typically 1-6 revolutions per hour) maintains steady-state operation with 90-98% VOC removal efficiency.
Zeolite Material Advantages
Hydrophobic zeolites offer distinct advantages over activated carbon:
Water Resistance: Unlike activated carbon, which adsorbs water vapor and loses capacity in humid conditions, hydrophobic zeolites maintain performance regardless of humidity levels.
Thermal Stability: Zeolites withstand regeneration temperatures up to 300°C without degradation, enabling effective desorption of high-boiling compounds.
Fire Safety: Zeolites are non-combustible, eliminating the fire risks associated with activated carbon systems handling ketones or other reactive solvents.
Selective Adsorption: Different zeolite types can be selected for specific VOC mixtures, optimizing removal efficiency for particular applications.
System Design Considerations
Zhongkang Environmental designs zeolite rotor systems with comprehensive engineering analysis:
Airflow Capacity: Systems range from 5,000 to 500,000 m³/h, accommodating everything from small coating operations to large chemical plants.
Concentration Ratios: Typical concentration ratios of 10:1 to 20:1 reduce downstream treatment requirements significantly. A 100,000 m³/h stream at 500 ppm becomes 5,000-10,000 m³/h at 5,000-10,000 ppm.
Energy Integration: Heat recovery from the oxidation system preheats desorption air, reducing overall energy consumption by 40-60%.
Safety Systems: Temperature monitoring, flame detection, and emergency ventilation ensure safe operation with flammable solvent mixtures.
Applications Across Industries
Paint and Coating: Automotive painting, furniture finishing, and industrial coating operations generate large volumes of dilute solvent emissions ideally suited to zeolite concentration.
Printing and Packaging: Rotogravure and flexographic printing release solvents that can be recovered for reuse, creating economic value from environmental compliance.
Chemical Manufacturing: Process vents and tank breathing emissions contain valuable organic compounds recoverable through concentration and condensation.
Semiconductor Industry: Photoresist solvents and cleaning chemicals require high-efficiency removal with minimal particulate generation.
Economic and Environmental Benefits
Zeolite rotor systems deliver compelling returns:
Energy Savings: Concentrating VOC streams reduces thermal oxidation fuel consumption by 80-90% compared to direct oxidation of dilute streams.
Solvent Recovery: Many applications recover 80-95% of solvents for reuse, offsetting raw material costs and reducing waste disposal.
Regulatory Compliance: Systems consistently achieve emission levels below 20 mg/m³, meeting stringent environmental regulations worldwide.
Carbon Footprint: Reduced fuel consumption and solvent recovery significantly lower the carbon footprint of manufacturing operations.
Zhongkang's Implementation Approach
Zhongkang Environmental provides comprehensive zeolite rotor solutions:
Process Analysis: Detailed engineering study of emission sources, flow rates, and VOC compositions to optimize system design.
Custom Engineering: Each system is tailored to specific application requirements, ensuring optimal performance and reliability.
Installation and Commissioning: Experienced technicians oversee installation, startup, and performance verification.
Maintenance Programs: Preventive maintenance contracts ensure continuous operation with minimal downtime.
Conclusion
Zeolite rotor concentration technology represents the state-of-the-art in VOC emission control. Zhongkang Environmental's expertise in system design, installation, and operation provides industries with effective, economical solutions for environmental compliance and resource recovery.
