FRP Absorption Towers: Chemical Resistance and Long-Term Reliability
2026-05-27
Introduction
Fiberglass Reinforced Plastic (FRP) absorption towers have become the standard for gas treatment in corrosive chemical environments. Unlike metal towers that suffer from corrosion, or concrete structures that degrade under acid attack, FRP towers provide decades of reliable service with minimal maintenance. Zhongkang Environmental manufactures FRP absorption towers that handle the most aggressive industrial exhaust streams.
FRP composites combine thermosetting resins with glass fiber reinforcements:

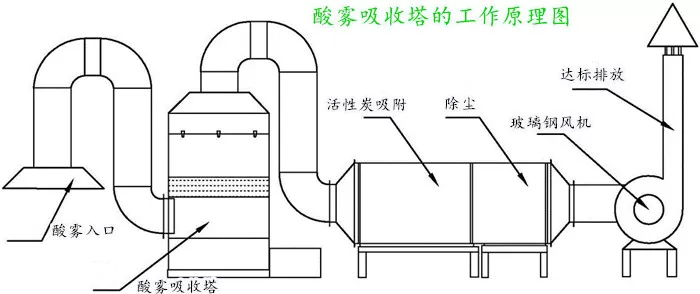

Figure: FRP Absorption Tower Equipment
Glass Fiber Architecture: Multiaxial fabrics, chopped strand mat, and surfacing veils create laminates with optimized strength and chemical barrier properties.
Laminate Construction: Inner corrosion barriers (2.5-5 mm of resin-rich layers) protect structural laminates from chemical attack while maintaining mechanical integrity.
Design Standards: Zhongkang manufactures to ASTM D3299, ASTM D4097, and Chinese GB standards, ensuring consistent quality and structural reliability.
Tower Design and Performance
Zhongkang's FRP absorption towers incorporate advanced engineering:
Packing Media: Structured and random packing materials maximize gas-liquid contact surface area. Options include polypropylene saddles, PTFE-coated elements, and ceramic media for high-temperature applications.
Distribution Systems: Weir-type or spray nozzles ensure uniform liquid distribution across the tower cross-section, preventing channeling and maximizing mass transfer efficiency.
Mist Elimination: Chevron or mesh-type mist eliminators capture entrained droplets, preventing liquid carryover into downstream equipment.
Structural Design: Computer-modeled wind loads, seismic forces, and operational pressures ensure structural integrity under all design conditions.
Applications in Industrial Gas Treatment
Acid Gas Scrubbing: HCl, H2SO4, HF, and HNO3 vapors from chemical processes, metal pickling, and semiconductor manufacturing are efficiently neutralized in FRP towers.
Chlorine Handling: Chlorine gas scrubbing systems for water treatment and chemical manufacturing utilize FRP's excellent chlorine resistance.
Odour Control: Hydrogen sulfide and ammonia removal from wastewater treatment plants, rendering facilities, and food processing operations.
VOC Recovery: Absorption towers recover valuable solvents from process streams, creating economic value while achieving emission compliance.
Advantages Over Alternative Materials
Corrosion Resistance: FRP withstands pH 1-14 environments where stainless steel would pit and carbon steel would rapidly corrode.
Lightweight Construction: FRP density of 1.8-2.0 g/cm³ compared to steel's 7.85 g/cm³ reduces foundation requirements and simplifies installation.
Thermal Insulation: FRP's low thermal conductivity (0.25 W/m·K) reduces heat loss and eliminates condensation on exterior surfaces.
Design Flexibility: Complex shapes, integral flanges, and custom nozzles are readily fabricated, reducing field assembly requirements.
Long Service Life: Properly designed FRP towers provide 20-30 year service lives in corrosive environments, compared to 5-10 years for coated steel alternatives.
Installation and Maintenance
Zhongkang provides comprehensive project support:
Site Supervision: Experienced technicians oversee foundation preparation, tower erection, and piping connections.
Performance Testing: Commissioning includes airflow measurement, pressure drop verification, and removal efficiency testing.
Maintenance Protocols: Annual inspections assess laminate condition, packing media integrity, and nozzle performance.
Repair Capabilities: Localized damage can be repaired using FRP patch techniques, extending tower life without replacement.
Conclusion
FRP absorption towers provide unmatched chemical resistance and long-term reliability for industrial gas treatment. Zhongkang Environmental's engineering expertise and manufacturing quality ensure that each tower delivers decades of trouble-free operation in the most demanding environments.
