Industrial Fume Purifier

Key Features

Extremely high treatment efficiency: over 95% oil mist and particulate removal at rated air volume.

Significant oil recovery: large quantity of high-purity oil recovered, allowing for quick return on investment.

High safety performance: equipped with comprehensive electrical protection functions.

Modular design: multiple power supplies control, ensuring continuous operation even if some power supplies stop working.

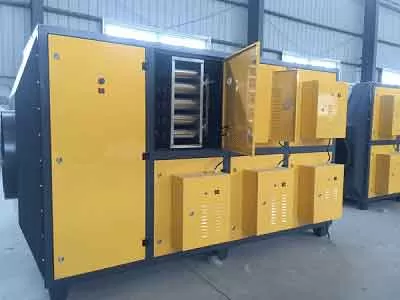

Simple cleaning and maintenance: just open the inspection door, remove the electric field, soak, rinse, and dry for reuse.

Product Overview

The ZK-ZL series high-efficiency industrial electrostatic fume purifier is designed to achieve true low-altitude emission, with no visible or minimal oil mist at the discharge outlet, meeting environmental emission standards. It features low wind resistance, low noise, and high purification efficiency. The modular, split-type combination structure facilitates easy installation, disassembly, maintenance, cleaning, and upkeep.

Working Principle

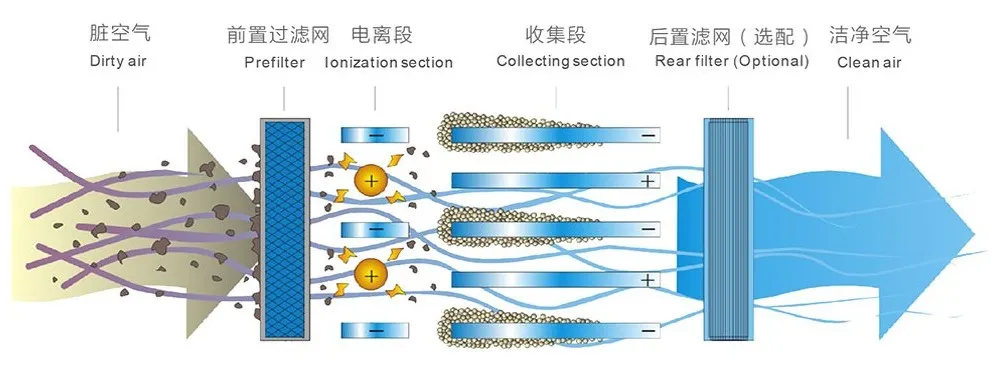

Oil fume waste gas discharged from the production workshop enters the industrial fume purifier. First, large oil droplets are removed by a front baffle and flow into an oil tank due to gravity. The remaining small particulate pollutants then enter the high-voltage electrostatic ionization zone. Here, strong electric fields charge the fine particles, turning them into charged ionic particles, achieving preliminary separation and purification.

Once the charged ionic particles reach the plate adsorption zone, they are immediately adsorbed. The oil droplets then flow back to the bottom oil collection basin under vertical gravity. After multi-stage treatment, the purified gas meets environmental requirements or pre-treatment design standards.

Advantages

Achieves low-altitude emission, meeting strict environmental standards.

Low wind resistance and low noise operation.

High purification efficiency for various industrial oil fumes.

Modular and split-type structure for easy installation, disassembly, and maintenance.

PWM high-voltage high-frequency power supply with unique arc suppression technology for enhanced safety.

Applications

Industrial manufacturing processes generating oil fumes (e.g., metal processing, plastics, rubber).

Food processing and catering industries with heavy oil mist.

Painting and coating operations.

Chemical and pharmaceutical industries.

Commercial kitchens and restaurants.

Technical Specifications

Parameter	Value
Oil Mist Removal Efficiency	≥95%
Particulate Removal Efficiency	≥95%
Electrode Plate Spacing	7mm
Effective Adsorption Area	13㎡ (per electric field)
Power Supply Type	PWM High-Voltage High-Frequency
Safety Features	Breakdown discharge protection, open-circuit protection, short-circuit protection, overheating protection, arc suppression technology

Product Structure

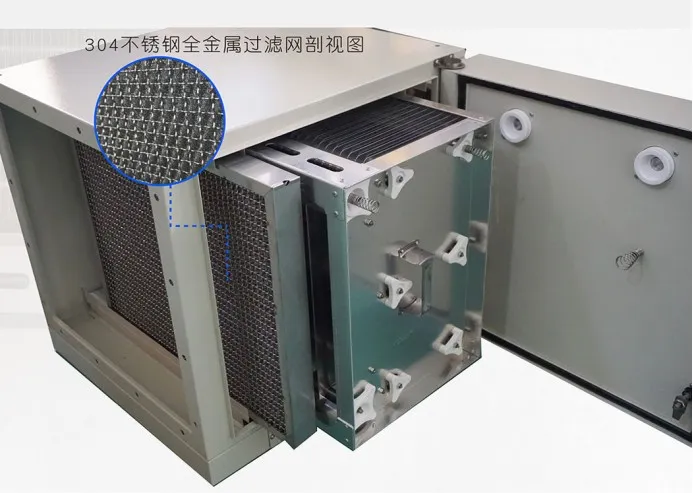

Front Filter Mesh

Made of 304 stainless steel all-metal wire mesh, it blocks large oil particles and ensures uniform airflow for the oil fume entering the purifier.

High and Low Voltage Electrostatic Fields

The core component for purifying oil mist and particulates. It uses a unique 7mm electrode plate spacing, significantly improving purification efficiency while maintaining low wind resistance.

Rear Filter Mesh

Prevents secondary pollution from any remaining fine particles and ensures clean discharge.

Ionization Section

Features a unique bamboo-joint-shaped casing, ensuring high-voltage stability and preventing discharge.

Stainless Steel Ionizer

Durable and corrosion-resistant, ensuring long-term stable operation.

PWM High-Voltage High-Frequency Power Supply

Equipped with unique arc suppression technology, ensuring stable output and enhanced safety.
